Motorola PIP1200 video monitor review

A useful reference for an exact one-camera local monitor

The Motorola PIP1200 is a small-screen video system built around a camera, a dedicated handheld parent unit and a local radio link. Its North American guide lists one parent unit and one camera in the standard PIP1200 package, along with both power adapters and a wall-mount bracket. Motorola also names PIP1200-2, PIP1200-3 and PIP1200-4 in the same family manual, but those are separate package identities. The suffix alone does not establish how many cameras a particular box contained, so this review assesses only the one-camera base configuration.

There is an important buying-status limit: Motorola’s exact support page and North-American English quick-start material identify PIP1200, but I could not establish an exact U.S. retail SKU or current U.S. listing. The manufacturer’s U.S. shop exact-term search returned no PIP1200 result; that does not prove the model was never sold here. Keep this page for identifying an existing or earlier set, not as a current purchase recommendation.

Local video without a router, with a modest display

The camera communicates directly with its parent unit over a 2.4 GHz FHSS radio link. The manual specifies 2405–2475 MHz, and the documented monitor path does not depend on home Wi-Fi, internet service or a phone app. That is a simpler fit if the person checking in wants the separate receiver at home rather than an away-from-home phone feed. It also means the screen only works within the radio connection’s usable reach; walls, metal, nearby electronics and the actual room layout matter. Motorola’s global product page advertises up to 1,000 feet, but the user guide provides no numeric open-space test protocol, so do not treat that headline as a room-specific guarantee.

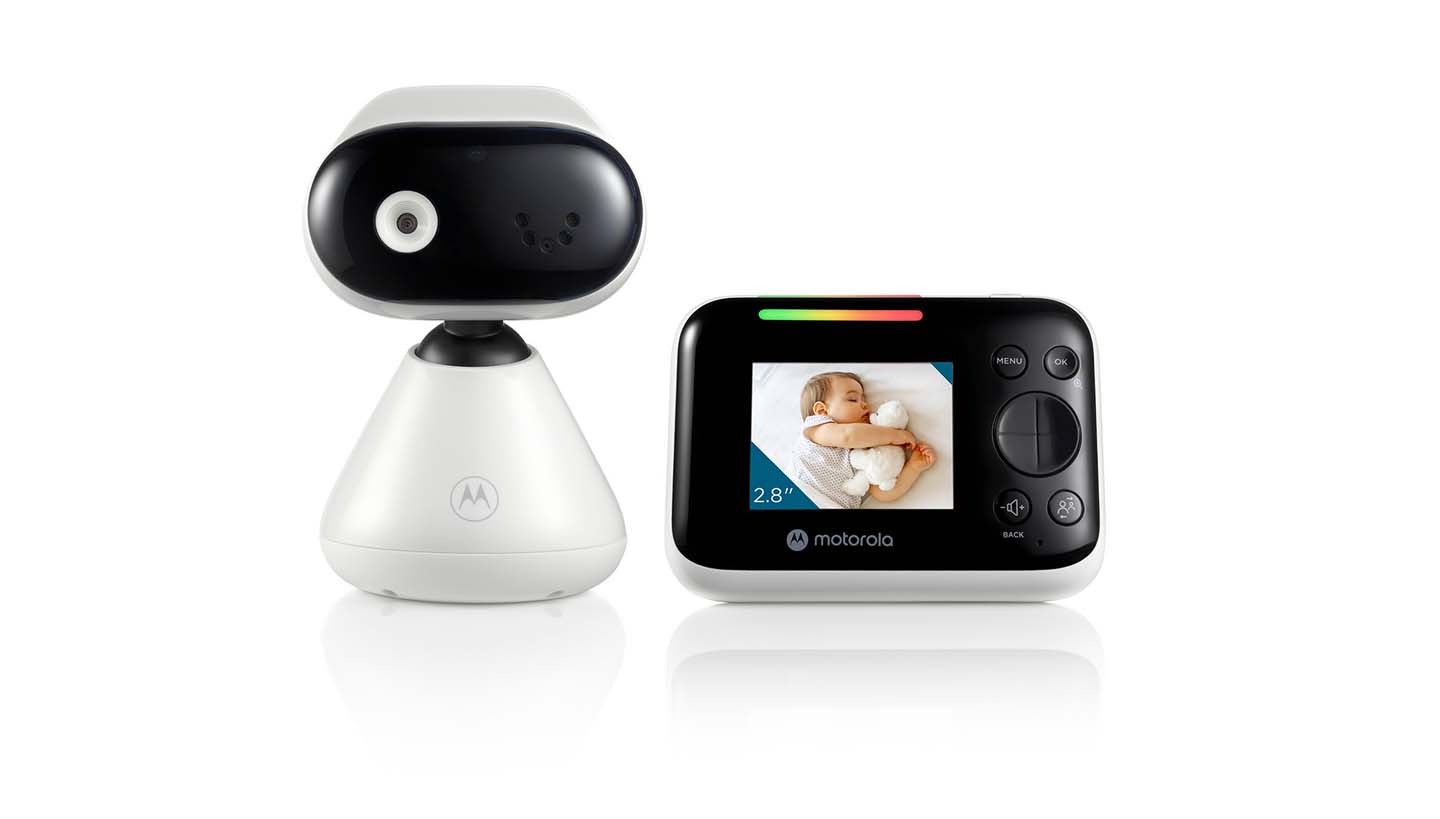

The parent screen is 2.8 inches diagonally, with a published 320 × 240-pixel resolution. It is a compact view, not the larger picture some people want for quick visual checks. The parent unit’s sound-level bars can still draw attention when the display is not the focus. Its screen-off setting can be set for five, 30 or 60 minutes, and the manual says audio continues while the display is off. That makes the receiver usable as a sound monitor between visual check-ins, but a blanked screen should not be mistaken for a camera or link failure.

What the base camera can and cannot do

The included camera needs its supplied mains adapter. The manual’s cord warnings are practical: keep the camera and power lead out of the crib and more than three feet from a child, and use the included wall bracket only as instructed. You can aim the camera by hand when placing or mounting it. A two-times digital zoom enlarges the picture on the parent screen, but it is not a motorized pan-and-tilt head. If remote camera movement is essential, this is the wrong configuration.

The guide documents infrared night vision, two-way talk and five preloaded lullabies. Parent-unit room-temperature readings can trigger visible and audible alerts when the selected low or high thresholds are crossed. Treat that as a household prompt, not a medical measurement or a substitute for checking the room directly. The manual also allows up to four cameras to be paired and describes cycling or split-screen viewing when multiple cameras are registered. Those capabilities describe expansion behavior, not included equipment: only one camera is in the base package. The manual says audio comes from the currently selected camera, so do not assume two rooms can be heard simultaneously.

Battery and operating expectations

The parent unit contains a built-in 3.8-volt, 2,000-mAh lithium-ion polymer battery. Motorola says to charge it continuously for at least 16 hours before first use and gives up to seven hours of use in ideal conditions. The manual does not define that as seven hours with the screen continuously on, and battery capacity falls with age; it is not a dependable screen-on runtime promise. The camera itself is mains-powered, so the parent battery does not keep the nursery camera transmitting during a power cut. Motorola warns owners not to replace the battery themselves and to contact customer service if it needs replacement.

For a household comparing monitor types, the PIP1200’s strengths are a direct local connection, a dedicated screen, talk-back and straightforward one-camera coverage. Its limits are just as concrete: the screen is small, the camera needs mains power, the base kit sees one room, and remote camera movement or phone access is not documented. If a larger dedicated display or a currently listed exact package matters, compare other individually reviewed local systems and check their package contents rather than assuming the PIP1200 suffix bundles are interchangeable. If away-from-home viewing is essential, choose a verified connected model instead of this local-only setup.

Manufacturer references and safe placement

For model identification and setup details, consult Motorola’s PIP1200 support page, English User Guide V3 and North American Quick Start Guide V2. The manufacturer product page gives the display and feature specifications, but its regional product offer does not establish a current U.S. SKU. Follow the exact manual’s placement and power instructions, test the radio link in the intended rooms before relying on it, and remember that the monitor is an aid rather than a substitute for responsible adult supervision.
